Testserver¶

Class Description¶

class server.server.Server¶

The great runtime server for all tests and more. This static class with class methods will be usually run as daemon on the main server. It is used to control the other routers, flash the firmwares and execute such as evaluate the tests. The web server and cli instances are connecting with this class and using its inherit public methods of ServerProxy.

classmethod control_switch(router_ids: typing.List, switch_all: bool, on_or_off: bool)¶

Switches the power for different routers on or off.

Parameters:	router_ids – List of router IDs switch_all – apply to all routers on_or_off – true for on, false for off

classmethod delete_test_results() → int¶

Remove all test results.

Returns:	Number of deleted results

classmethod get_power_strip() → power_strip.power_strip.PowerStrip¶

Power strip as object, for now only 1.

Returns:	Copy of the original object

classmethod get_router_by_id(router_id: int) → router.router.Router¶

Returns a Router with the given id.

Parameters:	router_id –
Returns:	Router

classmethod get_routers() → typing.List¶

List of known router.

Returns:	List is a copy of the original list

classmethod get_routers_task_queue_size(router_id: int) → int¶

Returns the size of the task queue including the actual running task.

Parameters:	router_id – ID of the router
Returns:	queue length

classmethod get_running_task(remote_system: network.remote_system.RemoteSystem) → typing.Union¶

Returns which task is running on the given RemoteSystem.

Parameters:	remote_system – the RemoteSystem
Returns:	if no job is running, it returns None

classmethod get_server_version() → str¶: Returns the server version as a string.

classmethod get_task_errors() → typing.List¶

Return a list of task errors.

Returns:	A list of tuples with error information

classmethod get_task_queue_description(router_id: int=-1) → [(<class 'int'>, <class 'str'>, <class 'bool'>)]¶

List of waiting and running tasks.

Parameters:	router_id – the specific router or all router if id = -1
Returns:	List of (router_id, str(Job), job_running)

classmethod get_test_results(router_id: int=-1) → [(<class 'int'>, <class 'str'>, <class 'unittest.result.TestResult'>)]¶

Returns the firmware test results for the router.

Parameters:	router_id – the specific router or all router if id = -1
Returns:	List of results

classmethod get_test_sets()¶

Returns:	Dictionary of Test_Sets

classmethod get_waiting_task_queue(remote_system: network.remote_system.RemoteSystem) → collections.deque¶

Returns the waiting task queue.

Parameters:	remote_system – the associated RemoteSystem of the queue
Returns:	Returns the queue as a collections.deque, filled with RemoteSystemJobClass and RemoteSystemJob and

there wait objects. Type: deque[Tuple[Union[RemoteSystemJobClass, RemoteSystemJob], DoneEvent]]

classmethod reboot_router(router_ids: typing.Union, reboot_all: bool, configmode: bool)¶

Reboots the given Routers.

Parameters:	router_ids – List of unique numbers to identify a Router reboot_all – Reboots all Routers configmode – Reboots Router into configmode

classmethod register_key(router_ids: typing.List, register_all: bool)¶

Sends the public-key of the given Routers to an email that is specified in the config-file.

Parameters:	router_ids – List of unique numbers to identify a Router register_all – Register the public-keys of all Routers

register_tty(tty_name: str='') → bool¶

Register tty from cli in logging.

Parameters:	tty_name – Name of the console
Return bool:	Success of the register

classmethod router_online(router_ids: typing.Union, update_all: bool, blocked: bool=False) → None¶

Tries to connect to the Router and updates the Mode of the Router.

Parameters:	router_ids – List of unique numbers to identify a `Router` update_all – Is True if all Routers should be updated blocked – blocks until it finished

classmethod set_running_task(remote_system: network.remote_system.RemoteSystem, task: typing.Union) → None¶

Sets internally which RemoteSystem executes which Task. It doesn’t run or starts the job on the RemoteSystem!

Parameters:	remote_system – the RemoteSystem task – the Task

classmethod set_waiting_task(remote_system: network.remote_system.RemoteSystem, task: typing.Union, done_event: threading.Event=<threading.Event object>) → None¶

Add a task to the waiting Queue of a specific RemoteSystem.

Parameters:	remote_system – the associated RemoteSystem of the queue task – task which has to wait done_event – event which will be triggered when the task is finished

classmethod setup_web_configuration(router_ids: typing.Union, setup_all: bool, wizard: bool)¶

After a systemupgrade, the Router starts in config-mode without the possibility to connect again via SSH. Therefore this class uses selenium to parse the given webpage. All options given by the web interface of the Router can be set via the ‘web_interface_config.yaml’, except for the sysupgrade which isn’t implemented yet.

Parameters:	router_ids – List of unique numbers to identify a Router setup_all – If True all Routers will be setuped via the webinterface

:param wizard

classmethod start(config_path: str='/home/docs/checkouts/readthedocs.org/user_builds/freifunk-testframework/checkouts/master/config') → None¶

Starts the runtime server with all components.

Parameters:	config_path – Path to an alternative config directory

classmethod start_job(remote_sys: network.remote_system.RemoteSystem, remote_job: network.remote_system.RemoteSystemJob, wait: int=-1) → bool¶

Starts an specific job on a RemoteSystem. The job will be executed asynchronous this means the method is not blocking. It add only the job to the task queue from RemoteSystem. If you want, that this method wait until the job is executed, you have to set the wait param. Think about that your job has maybe to wait in the queue.

Parameters:	remote_sys – The RemoteSystem on which the job will run. If none then the job will be executed on all

routers :param remote_job: The name of the test to execute :param wait: -1 for async execution and positive integer for wait in seconds :return: True if job was successful added in the queue

classmethod start_test_set(router_id: int, test_set_name: str, wait: int=-1) → bool¶

Start an specific test on a router.

Parameters:	router_id – The id of the router on which the test will run.

If id is -1 the test will be executed on all routers :param test_set_name: The name of the test set to execute :param wait: -1 for async execution and positive integer for wait in seconds :return: True if test was successful added in the queue

classmethod stop() → None¶: Stops the server, all running tests and closes all connections.

classmethod stop_all_tasks() → None¶: Stops all running jobs on the RemoteSystems.

classmethod sysupdate_firmware(router_ids: typing.Union, update_all: bool) → None¶

Downloads and copies the firmware to the Router given in the List(by a unique id) resp. to all Routers.

Parameters:	router_ids – List of unique numbers to identify a `Router` update_all – Is True if all Routers should be updated

classmethod sysupgrade_firmware(router_ids: typing.Union, upgrade_all: bool, n: bool) → None¶

Upgrades the firmware on the given Router s.

Parameters:	router_ids – List of unique numbers to identify a Router upgrade_all – If all is True all Routers were upgraded n – If n is True the upgrade discard the last firmware

classmethod update_router_info(router_ids: typing.Union, update_all: bool) → None¶

Updates all the information about the Router.

Parameters:	router_ids – List of unique numbers to identify a `Router` update_all – Is True if all Routers should be updated

classmethod write_in_db(key: str='', test: (<class 'int'>, <class 'str'>, <class 'unittest.result.TestResult'>)=None)¶

Write new entry in database.

Parameters:	key – Database entry key test – Tuple with router id, test name and test

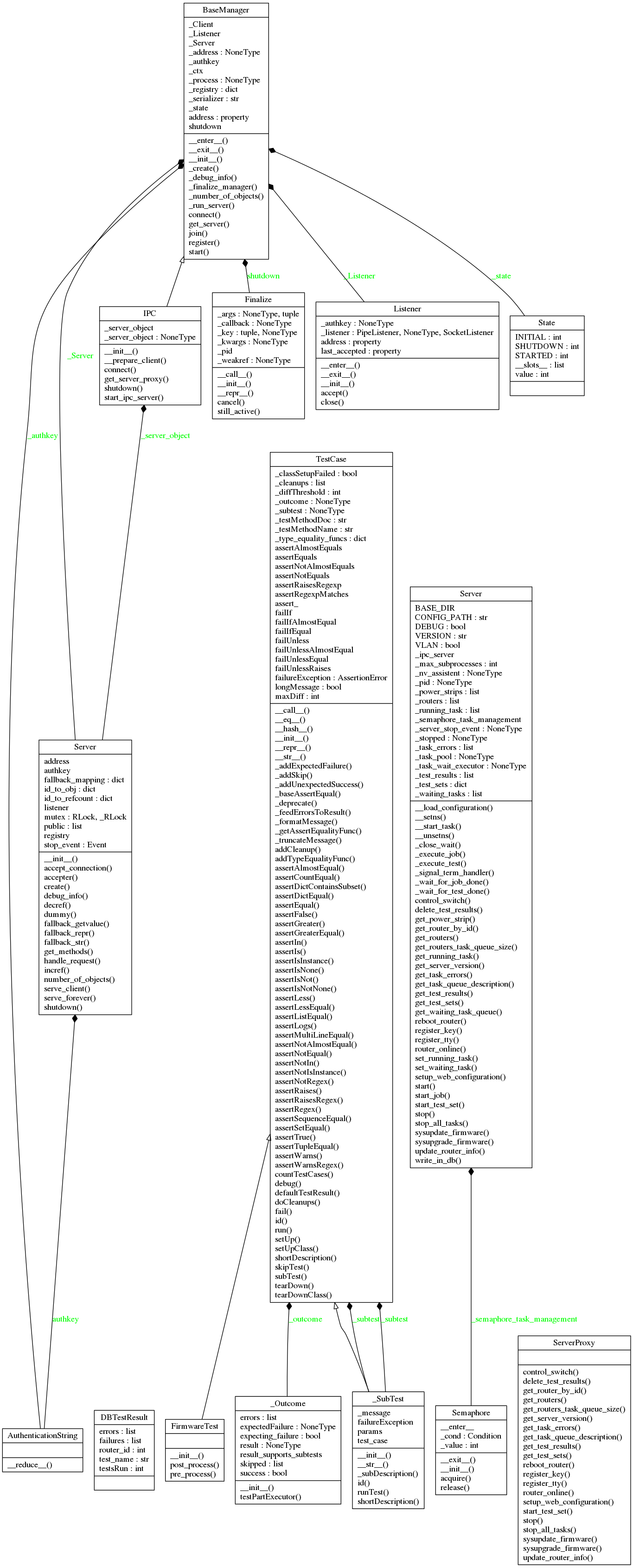

Class Diagram¶

ServerProxy¶

class server.serverproxy.ServerProxy¶

A proxy model for inter-process communication between the server runtime and clients like CLI and WebServer. Read the method description carefully! The behaviour may be different as expected. Normally the method will be executed remotely on the server and the return value is given by copy and not by reference!

classmethod control_switch(router_ids: typing.List, switch_all: bool, on_or_off: bool)¶

Controls the power on the given port

Parameters:	router_ids – List of router IDs switch_all – apply to all routers on_or_off – true for on, false for off

classmethod delete_test_results() → int¶

Remove all test results

Returns:	Number of deleted results

classmethod get_router_by_id(router_id: int) → router.router.Router¶

Returns a Router with the given id.

Parameters:	router_id –
Returns:	Router

classmethod get_routers() → typing.List¶

List of known routers

Returns:	List is a copy of the original list.

classmethod get_routers_task_queue_size(router_id: int) → int¶

Returns the size of the task queue including the actual running task

Parameters:	router_id – ID of the router
Returns:	queue length

classmethod get_server_version() → str¶: Returns the server version as a string

classmethod get_task_errors() → typing.List¶: Return a list of task errors :return: A list of tuples with error information

classmethod get_task_queue_description(router_id: int=-1) → [(<class 'int'>, <class 'str'>, <class 'bool'>)]¶

List of waiting and running tasks.

Parameters:	router_id – the specific router or all router if id = -1
Returns:	List of (router_id, str(Job), job_running)

classmethod get_test_results(router_id: int=-1) → [(<class 'int'>, <class 'str'>, <class 'unittest.result.TestResult'>)]¶

Returns the firmware test results for the router

Parameters:	router_id – the specific router or all router if id = -1
Returns:	List of results

classmethod get_test_sets()¶

Returns:	Dictionary of Test_Sets

classmethod reboot_router(router_ids: typing.List, reboot_all: bool, configmode: bool)¶

Reboots the given Routers.

Parameters:	router_ids – List of unique numbers to identify a Router reboot_all – Reboots all Routers configmode – Reboots Router into configmode

classmethod register_key(router_ids: typing.List, register_all: bool)¶

Sends the public-key of the given Routers to an email that is specified in the config-file.

Parameters:	router_ids – List of unique numbers to identify a Router register_all – Register the public-keys of all Routers

classmethod register_tty(tty_name: str='') → bool¶: Register tty from cli in logging :param tty_name: Name of the console :return bool: Success of the register

classmethod router_online(router_ids: typing.List, update_all: bool) → None¶

Tries to connect to the Router and updates the Mode of the Router.

Parameters:	router_ids – List of unique numbers to identify a `Router` update_all – Is True if all Routers should be updated

classmethod setup_web_configuration(router_ids: typing.List, setup_all: bool, wizard: bool)¶

After a systemupgrade, the Router starts in config-mode without the possibility to connect again via SSH. Therefore this class uses selenium to parse the given webpage. All options given by the web interface of the Router can be set via the ‘web_interface_config.yaml’, except for the sysupgrade which isn’t implemented yet

Parameters:	router_ids – List of unique numbers to identify a Router setup_all – If True all Routers will be setuped via the webinterface

:param wizard

classmethod start_test_set(router_id: int, test_set_name: str, wait: int=-1) → bool¶

Start an specific test on a router

Parameters:	router_id – The id of the router on which the test will run test_set_name – The name of the test set to execute wait – -1 for async execution and positive integer for wait in seconds
Returns:	True if test was successful added in the queue

classmethod stop() → None¶: Shutdown the server

classmethod sysupdate_firmware(router_ids: typing.List, update_all: bool) → None¶

Downloads and copies the firmware to the Router given in the List(by a unique id) resp. to all Routers

Parameters:	router_ids – List of unique numbers to identify a `Router` update_all – Is True if all Routers should be updated

classmethod sysupgrade_firmware(router_ids: typing.List, upgrade_all: bool, n: bool) → None¶

Upgrades the firmware on the given Router s

Parameters:	router_ids – List of unique numbers to identify a Router upgrade_all – If all is True all Routers were upgraded n – If n is True the upgrade discard the last firmware

classmethod update_router_info(router_ids: typing.List, update_all: bool) → None¶

Updates all the information about the Router

Parameters:	router_ids – List of unique numbers to identify a `Router` update_all – Is True if all Routers should be updated
